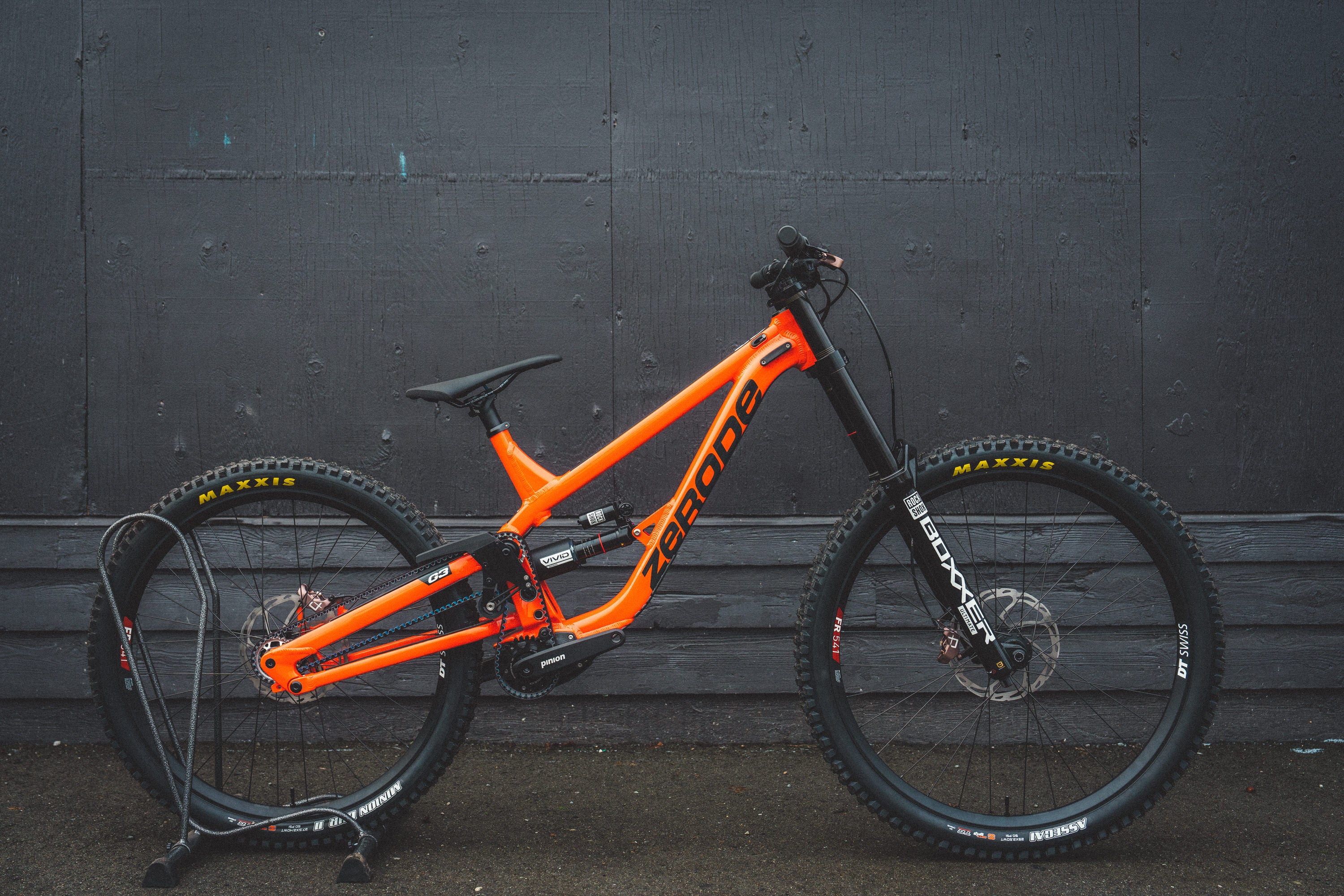

Zerode G3

The G3 represents everything you want to see in a downhill bike. The combination of a true high pivot with the low unsprung mass of a centralized gearbox and belt drive leads to an incredible suspension performance that allows you to take the roughest sections and the toughest corners at higher speeds.

The G3 comes in 3 builds:

• Origin: frame, rear shock, 6spd gearbox, drivetrain and shifter
• Origin + Fox 40 Factory kashima fork
• Full build
• Smart Shift is available to add to all kits.

Specifications:

• Frame: Zerode G3 high pivot alloy 200 mm travel
• Gearbox: Pinion C1.6 - 6 speed.
• Fork: Fox 40 Factory kashima 29 203 mm travel
• Shock: Fox DHX2 250x75
• Rims: DT Swiss FR541
• Hubs: DT swiss 350
• Tyres: Maxxis. Front Assegai, Rear DHR ll
• Brakes: Hayes Dominion
• Rotors: Front: 203 mm, Rear: 203 mm
• Bar: Title 35 25 mm rise black
• Stem: Title DM 35 black
• Saddle: Title MS1
• Seatpost: Title 31.6
• Headset: Cane Creek zs56/zs56

Geometry:

Short

• Reach: 435 mm
• ST Angle: 70°
• HT Angle: 63°
• HT Length: 105 mm
• CS Length: 440 mm
• BB Height: 350 mm
• BB Drop: 4 mm
• Wheelbase 1255 mm
• Stack 615mm
• ST length 420mm
• Standover 685mm

Medium

• Reach: 460 mm
• ST Angle: 70°
• HT Angle: 63°
• HT Length: 105 mm
• CS Length: 440 mm
• BB Height: 350 mm
• BB Drop: 4 mm
• Wheelbase 1280 mm
• Stack 615mm
• ST length 420mm
• Standover 685mm

Long

• Reach: 485 mm
• ST Angle: 70°
• HT Angle: 63°
• HT Length: 105 mm
• CS Length: 440 mm
• BB Height: 350 mm
• BB Drop: 4 mm
• Wheelbase 1305 mm
• Stack 615mm
• ST length 420mm
• Standover 685mm

Frame Specs:

• Frame Material: Aluminium
• Travel: 200mm
• Rear Shock: 250mm eye to eye x 75mm stroke
• Headset: 56/56
• Brake Mount: 203mm PM
• Seatpost: 31.6mm
• Drive Train: Pinion C.Line Gearbox
• Rear Hub: 142mm x 12mm single speed
